Festool 493493 – D 10-NL 28 HW-DF 500 DOMINO Cutter, 10mm
$81.00
10 mm carbide-tipped DOMINO cutter (D 10-NL 28 HW) for the Festool DF 500 joiner. Routs precise 10 mm mortises for tight, repeatable loose-tenon joints.
1 in stock (can be backordered)
Description

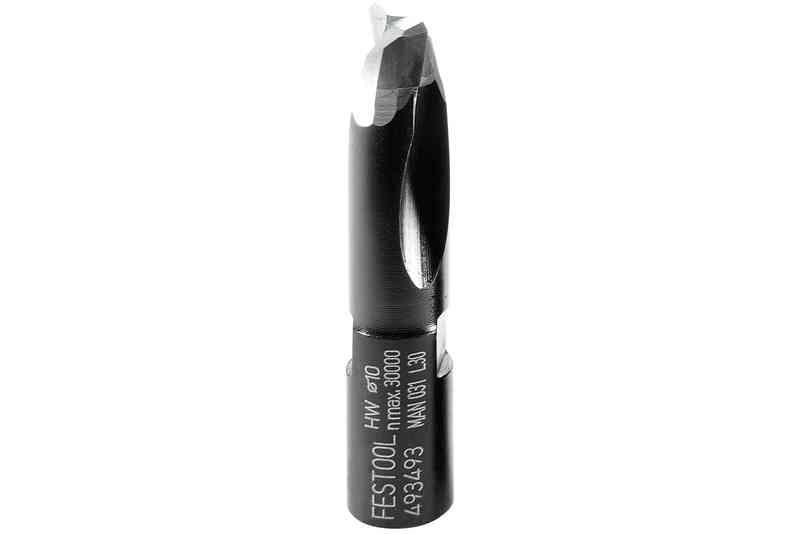

Festool 493493 DOMINO Cutter D 10-NL 28 HW-DF 500
The Festool 493493 is the Festool DOMINO cutter D 10-NL 28 HW-DF 500, a 10 mm carbide-tipped cutter for the Festool DOMINO DF 500 joining machine. It cuts the mortise for 10 mm DOMINO tenons, so loose-tenon joints line up and go together the same way every time. It is a precise cutter made for the heavier DF 500 joints: thicker face frames, carcases, table aprons and door rails.
Features and Specifications
- Model: D 10-NL 28 HW-DF 500
- Diameter: 10 mm, for 10 mm DOMINO tenons
- Cutting length (NL): 28 mm (about 1-1/8 inch)
- Cutting edges: carbide-tipped (HW); Festool rates them for 5,000 to 14,000 joints, depending on material
- Flutes: spiral flutes for clean cuts
- Shank: internally threaded for quick, easy cutter changes
- Fits: Festool DOMINO DF 500 only
Choosing the Right Cutter
10 mm is the largest cutter for the DF 500. Use it in thicker stock where a wider tenon adds glue area and strength. As a rule, match the tenon to roughly one third of the stock thickness, and set the plunge depth on the machine to suit the tenon length. The cutter diameter must match the tenon size you are using.
Who Uses It
Cabinet makers, furniture builders, millwork shops and finish carpenters who run the DOMINO DF 500 use the Festool 493493 for repeatable joints without a full mortise-and-tenon setup. It is a common replacement when a cutter dulls after long production runs.
Care and Changing Tips
Always unplug the machine before changing cutters. Clean resin and dust from the threads before fitting the cutter so it seats fully. Keep cutters in their case so the carbide edges do not chip against other tools. A dull cutter burns the mortise walls and needs more feed force, so replace it once the cut quality drops. Dust extraction keeps chips out of the mortise and improves the fit of the tenon.
Related Products
- Festool tools and accessories at IBEX
- All DOMINO and joiner cutters
- Festool 493492 DOMINO cutter D 8 for DF 500
- Festool 493491 DOMINO cutter D 6 for DF 500
- Festool 576423 DOMINO DF 500 Q-Set
Order the Festool 493493 from IBEX
IBEX stocks this item in Calgary and ships from Calgary. For larger quantities, call or email for a quote.
Additional information
| Weight | 0.30 lbs |
|---|---|
| Dimensions | 4.00 × 2.00 × 2.00 in |
| Brand | Festool |
| Product Type | DOMINO Cutter |
| Part Number | 493493 |
| Cutter Diameter | 10mm |
| Usable Length | 28mm |
| Material | Carbide-Tipped |
| Compatible Tools | Festool DF 500 DOMINO Joiner |
| Application | Cutting precise mortises for floating tenon joinery |
| Features | Long life, precision cutting, ideal for hardwoods |
| Packaging | Single Cutter |
| Model | D 10-NL 28 HW |
| GTIN (EAN) | 4014549059029 |
| Shank Diameter | 8 mm |
| Cutting Direction | Right-hand |
| Country of Origin | Germany |
| Condition | New |
