Lamello 145425 Tenso P-14 Self-Clamping Connectors with Preload – 300 Pairs

Description

Lamello 145425 Tenso P-14 Connectors with Preload

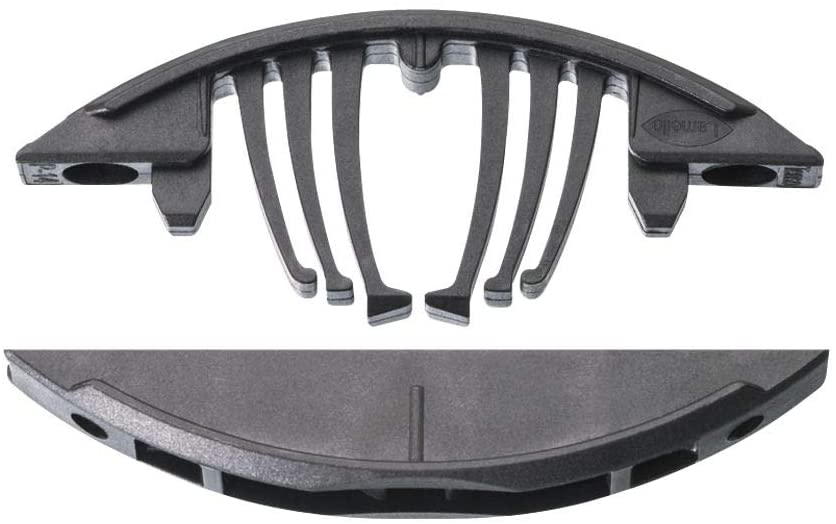

The Lamello 145425 box holds 300 pairs of Tenso P-14 self-clamping connectors. Tenso P-14 lets you glue panels and parts from 16 mm (5/8″) thick with an invisible joint and no external clamps. The connectors drop into P-System grooves cut with the Lamello Zeta P2, and the built-in preload pulls the joint tight while the glue cures.

Key Features

• Self-clamping. No clamps, cauls or assembly aids. Press the joint together and the connector holds it closed.
• Integrated preload. The pretensioning function keeps high clamping force on the glue line.
• Any angle. Works on mitres, butt joints and angles from 22.5 to 180 degrees.
• Completely invisible. Nothing shows on the finished surface.
• Fast installation. The connectors install in seconds in a P-System groove.

How to Install

Cut the P-System grooves in both parts with the Zeta P2, insert the connector halves, apply glue and push the joint together. The preload holds the joint closed until the adhesive cures, so the next part can go straight on the bench.

Typical Uses

The Lamello 145425 suits furniture makers, cabinet shops and architectural millwork, especially mitred casework and large panels that are hard to clamp. The 300-pair box is a practical size for production runs and busy shops.

Related Products

• Tenso P-14 starter set with preload clip, 300 pairs (145425S)
• P-System carbide groove cutter for Zeta P2 (132141)
• All Lamello products at IBEX

Order from IBEX

IBEX stocks Tenso P-14 connectors in Calgary and ships from Calgary. For larger quantities, call or email for a quote.
