Lamello 145436 Tenso P-14 Preload Clips – Box of 1000

Description

Lamello 145436 Tenso P-14 Preload Clips, Box of 1000

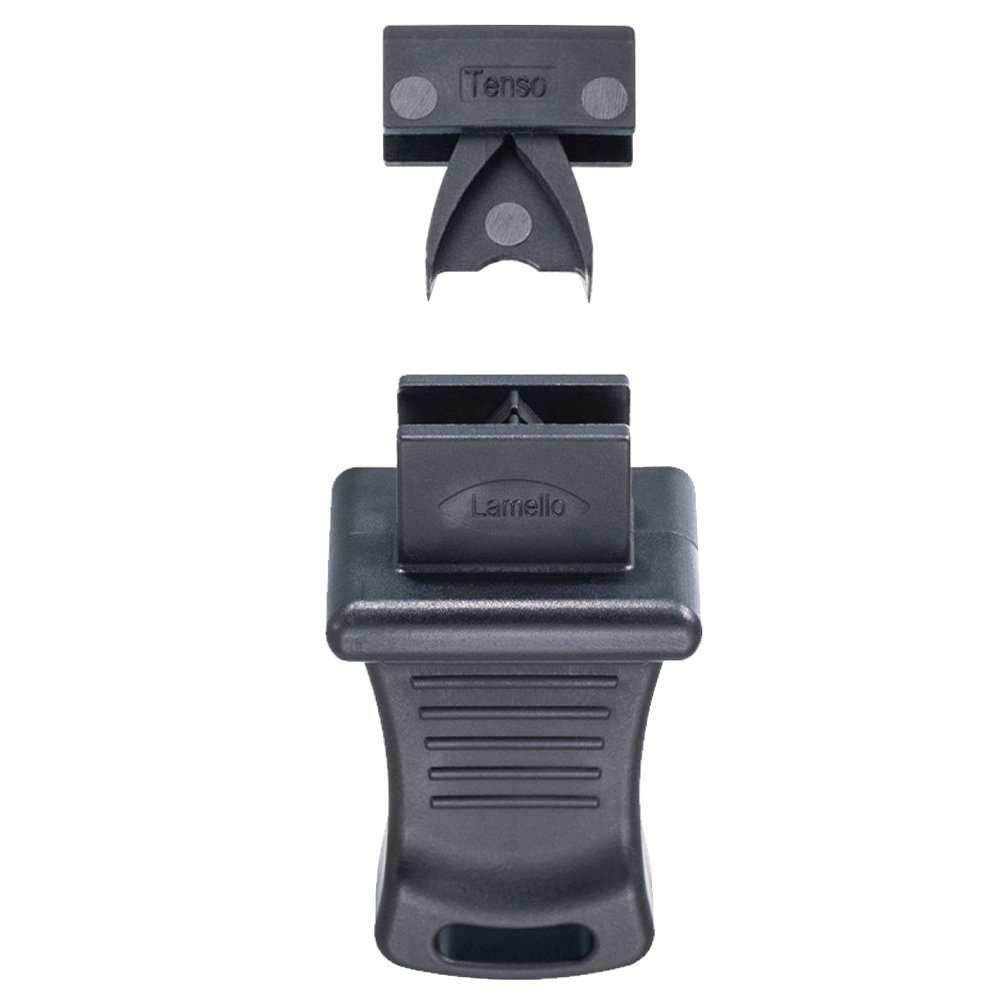

The Lamello 145436 is a box of 1000 preload clips for Tenso P-14 self-clamping connectors. The clips make Tenso assembly easier by preloading the connector before the parts are pushed together.

Features and Specifications

• Product: preload clips, connector accessory
• Fits: Lamello Tenso P-14 connectors
• Pack: 1000 clips
• Function: preloads the connector spring to reduce assembly force
• Benefit: more lateral tolerance when several connectors sit in a row

How It Works

The preload clip is inserted shortly before assembly. It preloads the connector spring so less force is needed to close the joint, and it increases lateral tolerance, which makes it easier to assemble larger parts with several connectors in a row. Without a clip, closing a long part with several Tenso connectors takes more force and the parts must line up more exactly. The Lamello 145436 clips fit onto the Tenso P-14 just before glue-up.

Where It Fits

Tenso P-14 is a self-clamping glueing connector for materials from 16 mm (about 5/8 inch) thickness, used in P-System grooves cut with a Lamello Zeta P2 biscuit joiner or on a CNC machine. It is always used with glue, works at angles from 22.5 to 180 degrees, and leaves no visible fastener. Shops that use Tenso P-14 in volume buy clips by the box so every connector can go in with a clip, which helps on long mitres, large panels and parts with many connectors.

Who Uses It

Cabinet makers, furniture manufacturers and interior fit-out shops that build mitred carcasses, counters, wall panels and other P-System work with Tenso P-14.

Assembly Tips

Dry-fit the parts first and check that every groove is clean and to depth. Fit the clips shortly before assembly, apply glue, and close the joint in one smooth push. Keep spare clips in their box in a dry place so they stay clean and ready.
