Lamello 6100302 Invis Mx2 starter kit with Rasto jig

Lamello 6100302 – Invis Mx2 Starter Kit with 20 Connectors and Rasto Jig

$843.99

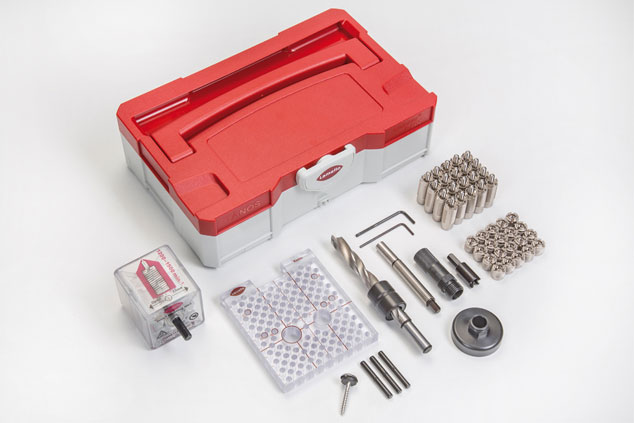

Magnet-driven, invisible connector system with 20 Mx2 fasteners, MiniMag, Rasto jig, and accessories in Mini Systainer. PN: 6100302.

2 in stock (can be backordered)

Local pickup in Calgary. Choose Pickup at checkout and collect from our NE Calgary warehouse, Unit 208, 2835 23 St NE (Monday to Friday, 8:30 am to 4:00 pm). Call 403-250-3399 before you come by so we can have it ready.
Part #: 6100302 Categories: , Brand:

Description

Lamello 6100302 Invis Mx2 Starter Kit

The Lamello 6100302 is the Invis Mx2 starter kit with 20 connectors and the Rasto drilling jig. Invis Mx2 is Lamello’s magnet-driven connector: the MiniMag Mx2, run by a cordless drill, turns the connector from outside the joint, so you get a completely invisible joint that can still be taken apart. Nothing shows on any surface.

Key Features

  • Invisible and detachable. No surface openings, and no clamping needed.
  • Strong. Up to 250 kg (551 lbs) clamping force per connector.
  • Precise drilling. Rasto jig with 12 mm drill bit and depth adjuster for repeatable hole placement.
  • Tight spots. Flexible shaft and insertion tools reach confined areas.
  • Organized. Everything packs into a Mini Systainer.

How It Works

Drill the holes with the Rasto jig, insert the Mx2 connectors, close the joint and place the MiniMag on the surface. Running the drill turns the magnet, which tightens the connector inside the joint. Reverse the drill to release it.

Typical Uses

High-end furniture, cabinetry, wall panels and architectural work where the joint must not show but the piece still has to come apart for transport or service.

Related Products

Order from IBEX

IBEX stocks this item in Calgary and ships from Calgary. For larger quantities, call or email for a quote.

Additional information

Weight15.00 lbs
Dimensions14.50 × 11.50 × 8.00 in
Brand

Lamello

Product Type

Invisible Connector Starter Kit

Series

Invis Mx2

Part Number

6100302

Connector Size

Ø12 mm x 37 mm

Stud Size

Ø12 mm x 14 mm

Clamping Force

Up to 250 kg (551 lbs) per connector

Drill Diameter

12 mm

Connector Material

Zinc

Installation Tolerance

±0.1 mm

Features

Magnet-driven, fully concealed, detachable joints

Ideal For

High-gloss furniture, molded components, architectural applications

Condition

New
