VSM 127437 – VSM 5" x 5/8"-11 Ceramic Flap Disc, 40 Grit, Type 29 10 Pack

Description

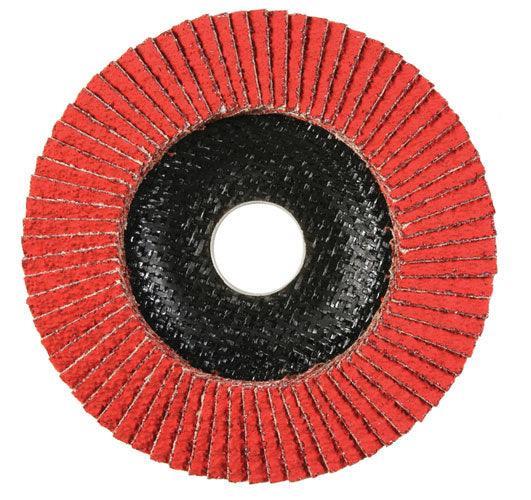

VSM 127437 5 Inch Ceramic Flap Disc, 40 Grit, Type 29

The VSM 127437 is a 5 inch, 40 grit ceramic flap disc with a 5/8-11 threaded hub and an angled Type 29 shape. The hub threads straight onto the angle grinder spindle, so no extra flange or nut is needed.

Features and Specifications

• Size: 5 inch (127 mm) diameter
• Mount: 5/8-11 threaded hub
• Grit: 40, for heavy stock removal
• Abrasive: ceramic alumina, self-sharpening for a steady cut
• Shape: Type 29, angled
• Backing: fiberglass
• Max speed: 12,200 RPM

How It Works

Ceramic grain fractures as it wears, exposing fresh cutting edges, so the disc keeps cutting through its life instead of glazing. The angled Type 29 profile puts more abrasive in contact with the work at a steeper grinding angle, which suits weld removal and heavy stock removal on flat and contoured surfaces.

Who Uses It

Welding and fabrication shops, structural steel and pipe crews and maintenance shops use the VSM 127437 for weld removal, beveling, blending and surface preparation on stainless steel, carbon steel and other tough alloys.

Tips for Best Results

Hold the grinder at about 15 to 25 degrees to the work and keep it moving. Let the grit cut rather than forcing it. Follow 40 grit with 60 or 80 when you need a smoother blend. Never run the disc above its rated speed, always use the guard, and wear eye, face and hand protection. Keep separate discs for stainless and carbon steel to avoid cross-contamination. Store discs in a dry place, away from heat and solvents, and inspect each disc for damage before mounting it.
