Festool 205562 – HW 160x1.8x20 TF52 L Laminate/HPL Saw Blade, 160mm, 52T, TCG, 20mm Bore
$175.00
160mm, 52-tooth TCG saw blade with 20mm bore for precise cutting in laminate and solid surface materials. Thin kerf design for efficient, chip-free cuts. PN: 205562.
2 in stock (can be backordered)
Description

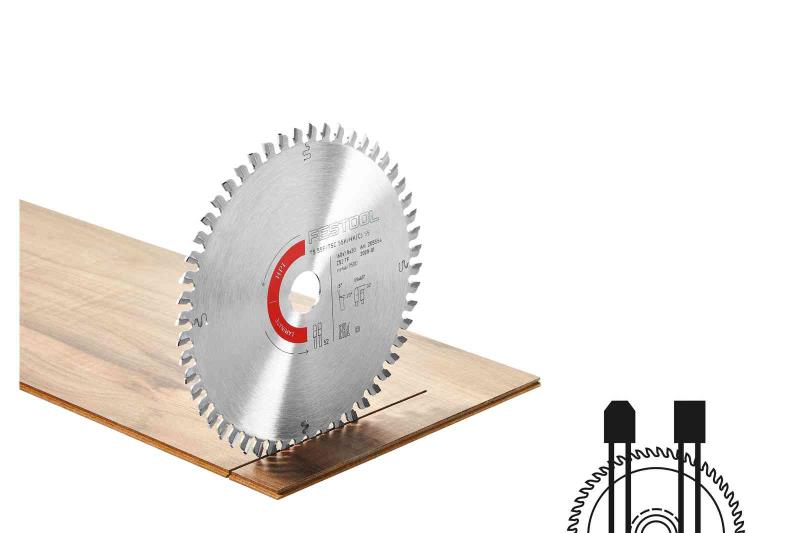

Festool 205562 HW 160×1.8×20 TF52 L Laminate/HPL Saw Blade
The Festool 205562 is the HW 160×1.8×20 TF52 L laminate/hpl saw blade from Festool, a 160 mm carbide-tipped blade with 52 teeth and a 20 mm bore. It is made for clean, chip-free cuts in hard coated materials in laminate, melamine, coated panels and solid surface materials. The thin kerf removes less material, which means less waste and less load on the saw motor.
Features and Specifications
- Diameter: 160 mm (6.29 inch)
- Bore: 20 mm (0.79 inch)
- Teeth: 52 carbide-tipped teeth, triple chip grind (TCG) geometry
- Tooth angles: negative 5 degree hook angle and 20 degree relief angle
- Kerf: 1.8 mm (0.07 inch), with a 1.2 mm (0.05 inch) blade body
- Materials: laminate, melamine, coated panels and solid surface materials
- Fits: the Festool TS 55 F, TSC 55 K, HK 55 and HKC 55 saws
Where It Fits
Festool lists this blade for the Festool TS 55 F, TSC 55 K, HK 55 and HKC 55 saws. Before ordering, confirm the blade diameter and bore your saw calls for in its manual. Mount it with the teeth pointing in the rotation direction marked on the saw, and tighten the flange as the manual describes.
Who Uses It
Kitchen and bath installers, countertop fabricators, flooring crews and shopfitters use this style of blade on coated and brittle materials, where a standard wood blade would chip the surface layer.
Getting Clean Cuts
Keep the coated face where the teeth enter the material, support the panel fully so it cannot flex, and feed at an even rate so the edge stays chip-free. Use the guide rail splinter guard or a sacrificial backer where the saw allows it,. Keep the blade clean of resin and pitch, because build-up makes the teeth run hot and dull faster. Remove the battery or unplug the saw before changing blades. When the Festool 205562 starts to burn, wander or need more push than usual, it is time to have it sharpened or replaced.
Related Products
- Festool tools and accessories at IBEX
- All circular saw blades
- Festool 495388 HW 260 W60 universal blade
- Festool 496309 HW 160 TF48 laminate blade
Order the Festool 205562 from IBEX
IBEX stocks this item in Calgary and ships from Calgary. For larger quantities, call or email for a quote.
Additional information
| Weight | 0.50 lbs |
|---|---|
| Dimensions | 8.75 × 8.00 × 0.50 in |
| Brand | Festool |
| Product Type | Circular Saw Blade |
| Part Number | FTL205562 |
| Diameter | 160 mm (6.29 inches) |
| Bore Diameter | 20 mm (0.79 inches) |
| Tooth Count | 52 |
| Tooth Shape | Triple Chip Grind (TCG) |
| Hook Angle | -5° |
| Relief Angle | 20° |
| Kerf Width | 1.8 mm (0.07 inches) |
| Blade Thickness | 1.2 mm (0.05 inches) |
| Material | Carbide-Tipped |
| Ideal For | Cutting laminate, melamine, coated panels, solid surface materials |
| Compatibility | Festool TS 55 F, TSC 55 K, HK 55, HKC 55 saws |
| Condition | New |
