Festool 496304 – HW 160x2.2x20 W28 Wood Universal Saw Blade, 160mm, 28T, ATB, 20mm Bore

Description

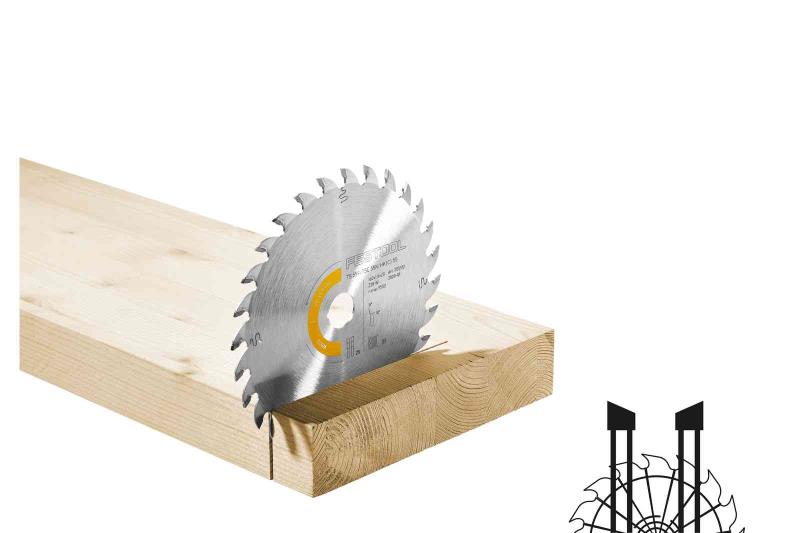

Festool 496304 HW 160×2.2×20 W28 Wood Universal Saw Blade

The Festool 496304 is the HW 160×2.2×20 W28 wood universal saw blade from Festool, a 160 mm carbide-tipped blade with 28 teeth and a 20 mm bore. It is made for both rip cuts and cross-cuts in solid wood, plywood, MDF, HDF, chipboard and soft plastics. The thin kerf removes less material, which means less waste and less load on the saw motor.

Features and Specifications

• Diameter: 160 mm (6.29 inch)
• Bore: 20 mm (0.79 inch)
• Teeth: 28 carbide-tipped teeth, alternate top bevel (ATB) geometry
• Tooth angles: 15 degree hook angle
• Kerf: 2.2 mm (0.087 inch), with a 1.6 mm (0.063 inch) blade body
• Materials: solid wood, plywood, MDF, HDF, chipboard and soft plastics
• Expansion slots: laser-cut slots help reduce vibration and noise
• Fits: the Festool TS 55, TSC 55 and ATF 55 plunge-cut saws

Where It Fits

Festool lists this blade for the Festool TS 55, TSC 55 and ATF 55 plunge-cut saws. Before ordering, confirm the blade diameter and bore your saw calls for in its manual. Mount it with the teeth pointing in the rotation direction marked on the saw, and tighten the flange as the manual describes.

Who Uses It

Cabinet makers, carpenters and installers use a universal blade as the everyday blade that stays on the saw. It handles breaking down sheet goods, trimming solid stock and general shop and site work without a blade change for every task.

Getting Clean Cuts

For show edges in veneer, switch to a fine cut blade; for heavy ripping in thick solid wood, a rip blade cuts faster. Use the guide rail splinter guard or a sacrificial backer where the saw allows it,. Keep the blade clean of resin and pitch, because build-up makes the teeth run hot and dull faster. Remove the battery or unplug the saw before changing blades. When the Festool 496304 starts to burn, wander or need more push than usual, it is time to have it sharpened or replaced.

Related Products

• Festool tools and accessories at IBEX
• All circular saw blades
• Festool 495381 HW 210 W52 fine cut blade
• Festool 577082 DIA 47 scoring blade

Order the Festool 496304 from IBEX

IBEX stocks this item in Calgary and ships from Calgary. For larger quantities, call or email for a quote.
