Festool 498214 – D 10x80/150 BU Beech DOMINO Tenons, 10mm x 80mm, 150-Pack

Description

Festool 498214 DOMINO Tenons D 10×80/150 BU, 10×80 mm

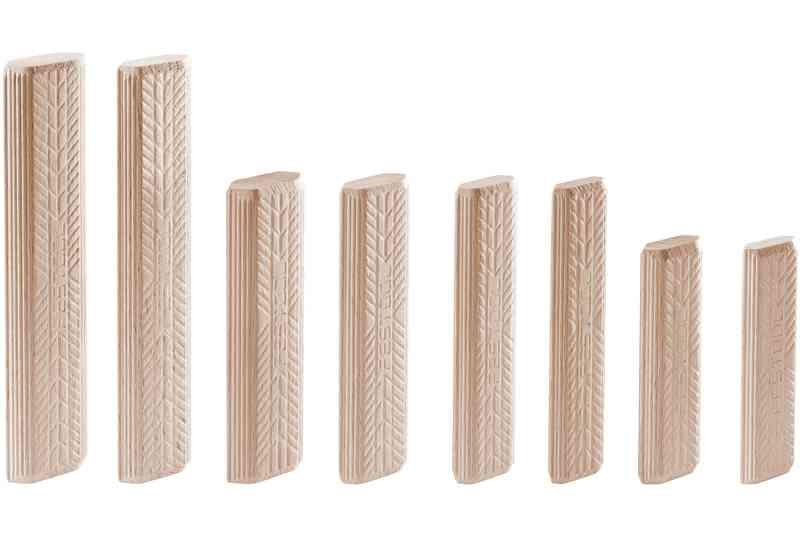

The Festool 498214 is a pack of 150 solid beech DOMINO tenons, size 10 x 80 mm, made as loose (floating) tenons for the Festool DOMINO XL DF 700 joiner. Each tenon fits a mortise cut by the matching 10 mm DOMINO cutter, giving a strong, self-aligning glue joint for furniture, cabinetry and frame work. The 150-count pack is a practical size for a shop that uses this tenon on regular jobs or wants to keep it on hand.

Features and Specifications

• Festool code: D 10×80/150 BU
• Size: 10 x 80 mm (10 mm thick, 80 mm nominal length)
• Material: solid beech hardwood, FSC-certified per Festool
• Shape: flat, elongated profile that resists rotating, so parts stay aligned during edge and face gluing
• Glue pockets: embossed glue pockets and lateral grooves spread adhesive and give excess glue somewhere to go
• Glue space: each tenon is about 2 mm shorter than its nominal length to leave room for glue in the mortise
• Quantity: 150 tenons per pack
• For: Festool DOMINO XL DF 700 joiner

Where This Size Fits

Long, thick tenons like this are made for large joints: beds, workbenches, heavy tables, entry and garden doors, stair parts and timber framing, where a deep mortise gives the most glue surface and strength. Set the DOMINO depth so the two mortises together are slightly deeper than the tenon is long, and match the cutter diameter to the 10 mm tenon thickness. The tenons work in both solid wood and plywood.

Tips for Clean Joints

Dry-fit the first joint of a job before you glue. Put glue in the mortise walls rather than only on the tenon, then close and clamp the joint promptly. Keep the box closed and store tenons in a dry place so they do not take on moisture and swell, which makes them hard to seat.
