Lamello 145438 – Tenso P-10 Self-Clamping Connectors with Preload Clip, 1000-Pack

Description

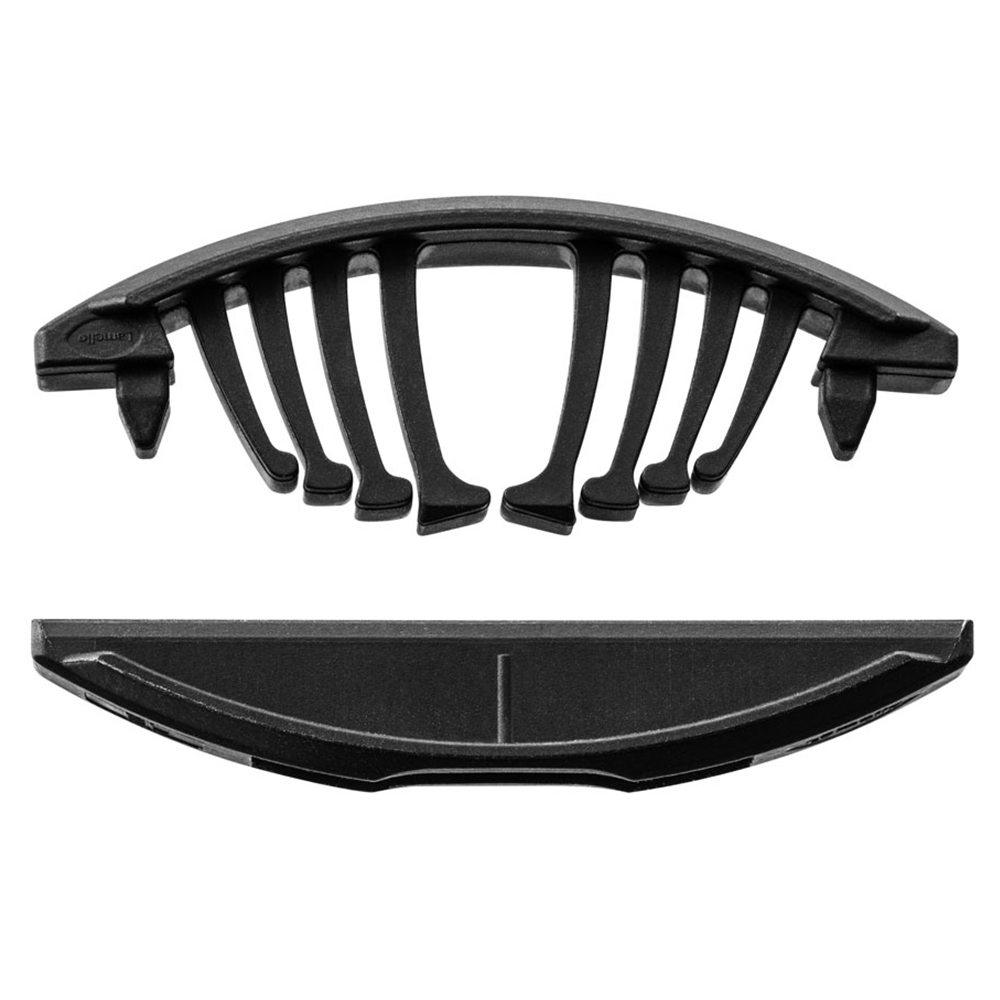

Lamello 145438 Tenso P-10 Connectors, 1000 Pack

The Lamello 145438 is a bulk pack of 1000 Tenso P-10 self-clamping connectors with preload clips. Tenso P-10 is the compact Tenso for thinner material: it glues butt joints from 12 mm and mitre joints from 15 mm with a completely invisible joint and no clamps or presses.

Key Features

• Self-clamping. High clamping force holds the joint closed while the glue cures.
• Preload clips included. Reduce insertion force for easier assembly, especially on many joints or delicate material.
• Any angle. Works from 22.5 to 180 degrees.
• Invisible. Nothing shows on the finished piece.
• Fast. Anchors in seconds in the form-locking P-System groove.

How to Install

Cut P-System grooves with the Lamello Zeta P2, insert the connectors, apply glue and press the parts together. The connector keeps the joint tight and aligned until the glue sets.

Typical Uses

High-end cabinetry, furniture, millwork and interior construction, especially thin mitred parts that are hard to clamp. The 1000 pack suits production shops.

Tenso P-10 or Tenso P-14?

Choose Tenso P-10 for thinner parts: butt joints from 12 mm and mitres from 15 mm. For panels 16 mm (5/8″) and thicker, Tenso P-14 gives a deeper anchor and more clamping force. Both use the same P-System groove from the Zeta P2, so a shop can stock both and pick the connector to suit the material on each job. The preload clips in the Lamello 145438 pack make insertion easier when you are assembling a large batch of parts.

Related Products

• Tenso P-10 with preload clip, box of 300 (145428)
• Tenso P-14 for 16 mm+ panels, 300 pairs (145425)
• All Lamello products at IBEX

Order from IBEX

IBEX stocks the Lamello 145438 in Calgary and ships from Calgary. For larger quantities, call or email for a quote.
