Lamello 186321 Cabineo 12 cabinet connectors 2000 pieces

Lamello 186321 – Cabineo 12 Cabinet Connector, Nickel-Plated Screw, 2000 pcs

$1,249.99

Lamello Cabineo 12 connectors with nickel-plated screws for CNC-optimized cabinet joinery. 2000 pcs. Tool-free, high-clamp joints. Part #186321

5 in stock (can be backordered)

Local pickup in Calgary. Choose Pickup at checkout and collect from our NE Calgary warehouse, Unit 208, 2835 23 St NE (Monday to Friday, 8:30 am to 4:00 pm). Call 403-250-3399 before you come by so we can have it ready.
Part #: 186321 Categories: , Brand:

Description

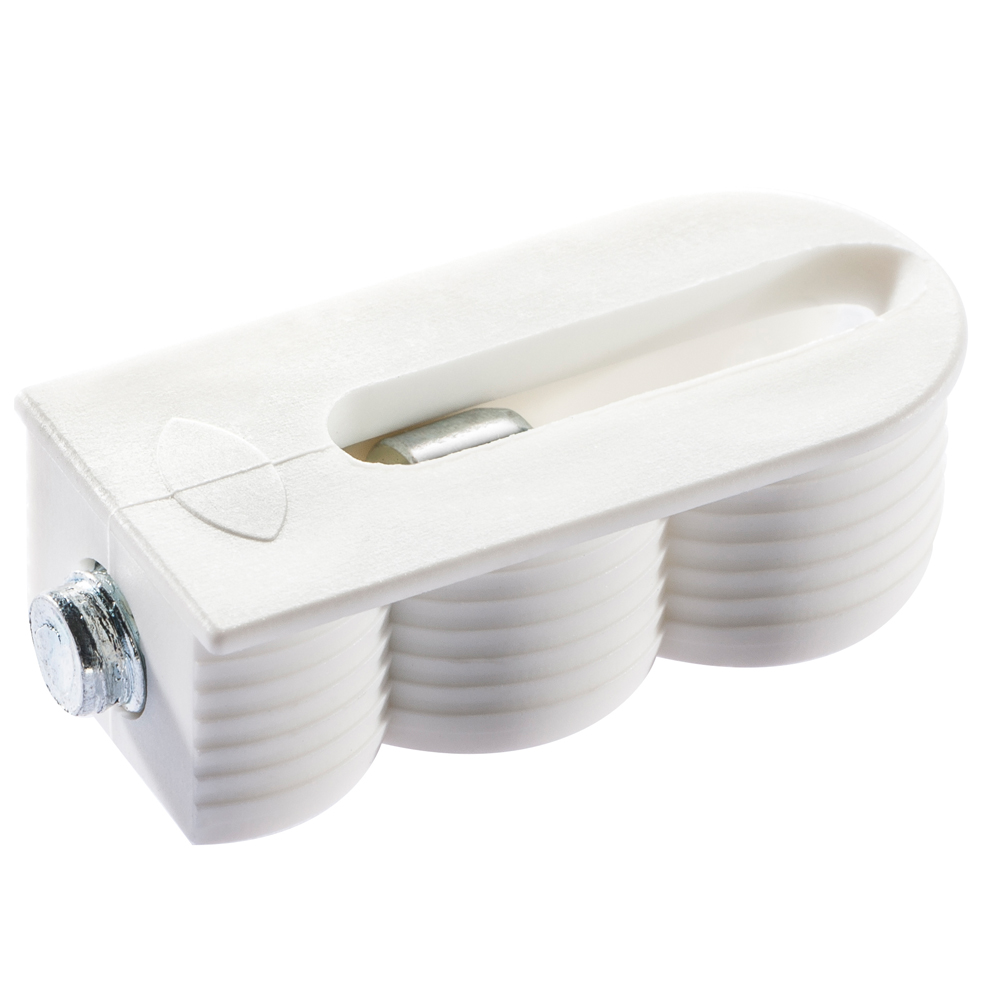

Lamello 186321 Cabineo 12 Cabinet Connectors, 2000 pcs

The Lamello 186321 box holds 2000 Cabineo 12 cabinet connectors with an integrated nickel-plated steel screw. Cabineo 12 joins carcass and corner joints in panels from 13 mm thick, with no dowel drilling and no multi-step installation. It is built for CNC production.

Key Features

  • Surface machining only. No edge drilling or extra hardware, so it suits virtually any CNC machine.
  • Integrated screw. The nickel-plated steel screw delivers high clamping force for tight, stable joints.
  • Faster assembly. Cuts labour time and improves consistency compared with dowel joinery.
  • Shop or site. Assemble in the workshop or on the job site.

How It Installs

The CNC mills a pocket in the panel face, the connector is pressed in, and the screw is driven into the mating panel with a cordless drill to pull the corner tight.

Typical Uses

Kitchen and bathroom cabinets, closets, shelving and furniture carcasses. The 2000-piece box is the economical size for manufacturers and busy cabinet shops.

Related Products

Order from IBEX

IBEX stocks this item in Calgary and ships from Calgary. For larger quantities, call or email for a quote.

Additional information

Weight36.00 lbs
Dimensions19.00 × 13.00 × 8.00 in
Part Number

186321

Brand

Lamello

Product Type

Cabinet Connector

Model

Cabineo 12

Material

Nickel-Plated Steel Screw

Panel Thickness

From 13 mm and up

Installation

CNC Surface Milling Only

Drilling Required

No Dowel or Edge Drilling Required

Clamping Method

Integrated High Clamping Force

Assembly Type

Corner Joints, Carcasses, Cabinets

Compatible Machines

All Standard CNC Routers

Use Case

High-Volume Cabinetmaking, Furniture Production

Packaging

2000 Connectors per Box

Condition

New
