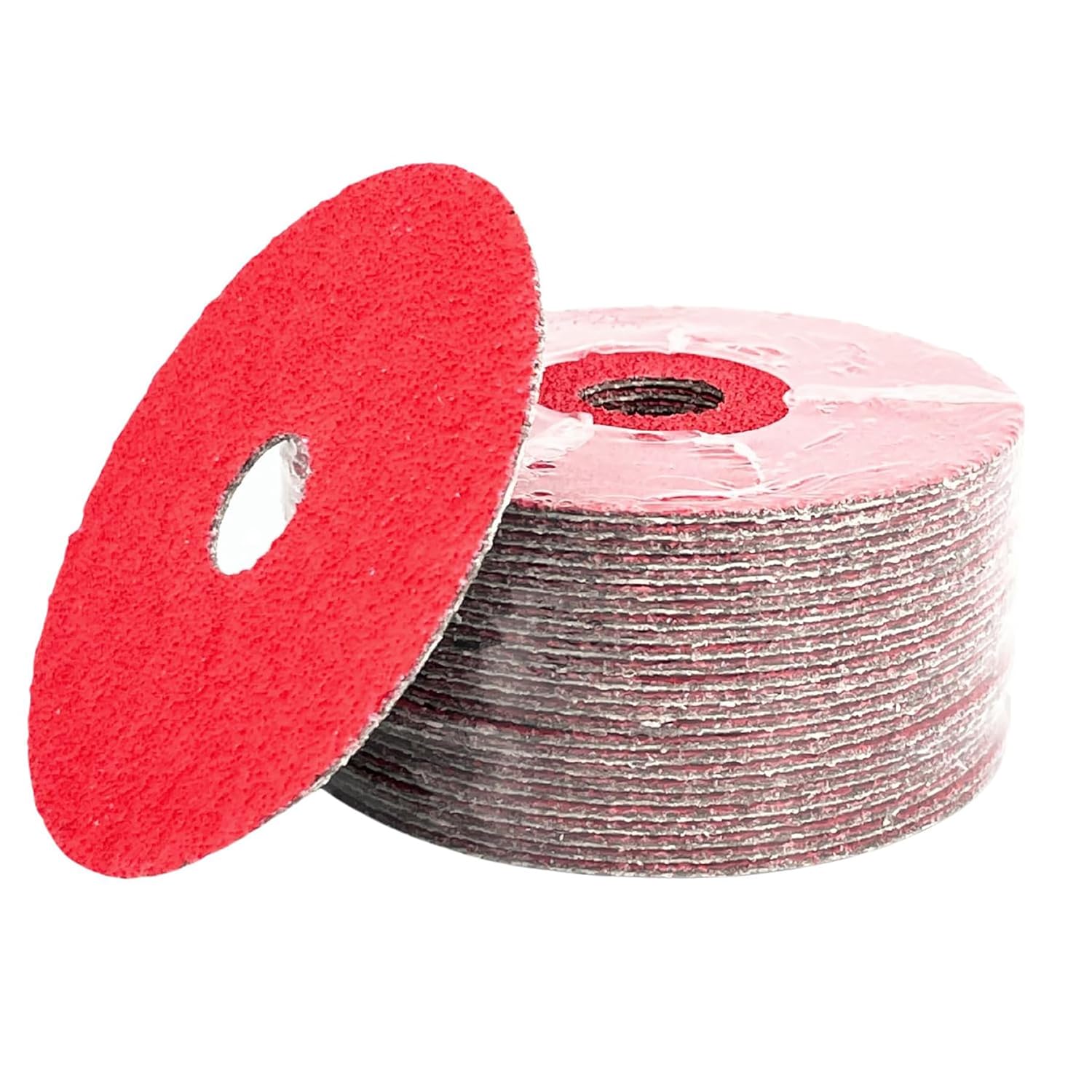

VSM 130255 – VSM XF885 5" x 7/8" Fibre Disc, 36 Grit Ceramic Plus (50/Box)
$151.93
5″ x 7/8″ ceramic fibre disc with 36 grit for aggressive grinding. PN: VSM130255. 50 discs per box.
2 in stock (can be backordered)
Description
VSM 130255 XF885 5 x 7/8 Inch Fibre Disc, 36 Grit
The VSM 130255 is a VSM XF885 CERAMICS Plus fibre disc, 5 inch diameter with a 7/8 inch arbor hole, in 36 grit. It is built for high stock removal during bevelling or weld seam processing, and for cool grinding on stainless steel, superalloys, aluminium and unalloyed steel.
Features and Specifications
- Series: VSM XF885 CERAMICS Plus
- Size: 5 inch (125 mm) diameter, 7/8 inch (22.23 mm) arbor hole
- Grit: 36, a coarse grade for heavy stock removal, weld seam grinding and bevelling
- Grain: microcrystalline ceramic with an optimised self-sharpening effect
- Bond and coat: full-resin bonded, with a grinding-active TOP SIZE layer for cooler grinding
- Backing: form-resistant vulcanised fibre
- Pressure: made for medium to high contact pressure on hand-held machines
- Colour: red-brown
- Packaging: 50 discs per box
How It Works
The self-sharpening ceramic grain keeps breaking down into fresh cutting edges, so the VSM 130255 keeps cutting instead of glazing over. The TOP SIZE layer reduces heat at the work, which matters on stainless steel and other heat-sensitive metals where heat tint and distortion are a problem. Mount the disc on an angle grinder with a backing pad rated for the grinder speed.
Who Uses It
Metal fabricators, welders, structural and pipe shops, millwrights and maintenance crews use fibre discs for weld removal, bevelling, edge breaking, rust and scale removal and general surface preparation. A ceramic disc suits shops that grind a lot of stainless steel or hard alloys.
Tips for Grinding
Hold the grinder at a shallow angle, about 15 to 25 degrees, and keep the disc moving so you do not dig a groove. Let the ceramic grain work under steady pressure; too little pressure lets the grain glaze, too much overheats the work. Step down in grit to remove scratches from the previous grade. Store discs flat in a dry place, because fibre backings can cup in humid conditions. Always wear eye and face protection and use the grinder guard.
Related Products
- VSM products at IBEX
- Fibre and Quick-Change Discs at IBEX
- VSM 130254 XF885 5 inch fibre disc, 24 grit
- VSM 130257 XF885 5 inch fibre disc, 50 grit
Order the VSM 130255 from IBEX
IBEX stocks this item in Calgary and ships from Calgary. For larger quantities, call or email for a quote.
Additional information
| Weight | 3.50 lbs |
|---|---|
| Dimensions | 5.00 × 5.00 × 4.75 in |
| Brand | VSM |
| Product Type | Fibre Disc |
| Series | XF885 |
| Part Number | VSM130255 |
| Diameter | 5 inches (127 mm) |
| Arbor Hole Size | 7/8 inch (22.23 mm) |
| Abrasive Material | Ceramic Alumina |
| Backing Material | Vulcanized Fiber |
| Bonding | Full-Resin Bonded |
| Features | Self-Sharpening, TOP SIZE Grinding-Active Layer |
| Applications | Weld Seam Processing, Beveling, Stock Removal |
| Compatible Tools | Angle Grinders |
| Packaging | 50 Discs per Box |
| Condition | New |
| Grit | 36 |
