Festool 493296 – D 5x19x30/1800 Beech DOMINO Tenons, 5mm x 30mm, 1800-Pack

Description

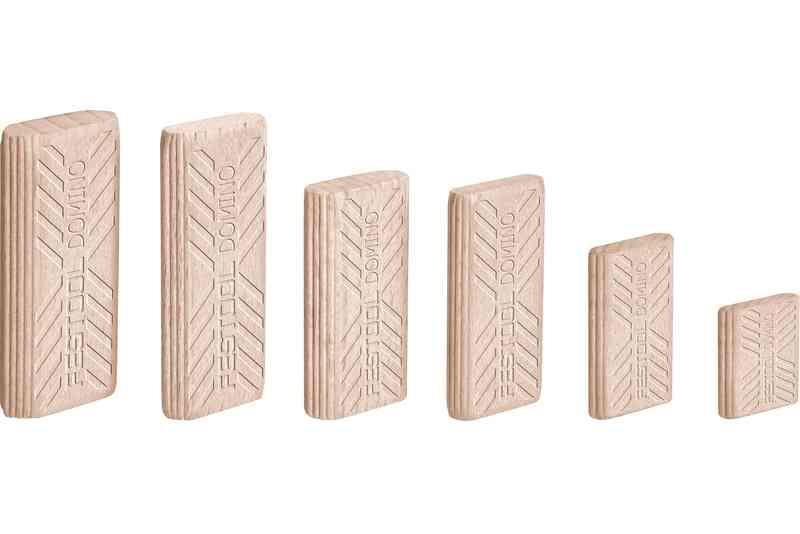

Festool 493296 DOMINO Tenons D 5x19x30/1800, 5×30 mm

The Festool 493296 is a pack of 1800 solid beech DOMINO tenons, size 5 x 19 x 30 mm, made as loose (floating) tenons for the Festool DOMINO DF 500 joiner. Each tenon fits a mortise cut by the matching 5 mm DOMINO cutter, giving a strong, self-aligning glue joint for furniture, cabinetry and frame work. The bulk 1800-count box suits production shops and cabinet lines that use this size every day.

Features and Specifications

• Festool code: D 5x19x30/1800
• Size: 5 x 19 x 30 mm (5 mm thick, 30 mm nominal length)
• Material: solid beech hardwood, FSC-certified per Festool
• Shape: flat, elongated profile that resists rotating, so parts stay aligned during edge and face gluing
• Glue pockets: embossed glue pockets and lateral grooves spread adhesive and give excess glue somewhere to go
• Glue space: each tenon is about 2 mm shorter than its nominal length to leave room for glue in the mortise
• Quantity: 1800 tenons per pack
• For: Festool DOMINO DF 500 joiner

Where This Size Fits

Small tenons like this suit thin stock and light assemblies: face frames, drawer boxes, small boxes, picture frames and narrow rails where a larger mortise would weaken the part. Set the DOMINO depth so the two mortises together are slightly deeper than the tenon is long, and match the cutter diameter to the 5 mm tenon thickness. The tenons work in both solid wood and plywood.

Tips for Clean Joints

Dry-fit the first joint of a job before you glue. Put glue in the mortise walls rather than only on the tenon, then close and clamp the joint promptly. Keep the box closed and store tenons in a dry place so they do not take on moisture and swell, which makes them hard to seat.
