Lamello 145315 – Clamex P-14/10 Flexus Detachable Connector, 80 Pairs/Box
$235.99
Best for: Shelves and parts that must be fitted into, or removed from, an already assembled cabinet.
Why this one: Flexus has flexible positioning pins so parts slide into a built cabinet; pick standard Clamex P-14 for regular detachable joints.
P-System groove | Butt joints from 12 mm (1/2″) | Mitres from 18 mm (11/16″) | 80 pairs
1 in stock (can be backordered)
Description

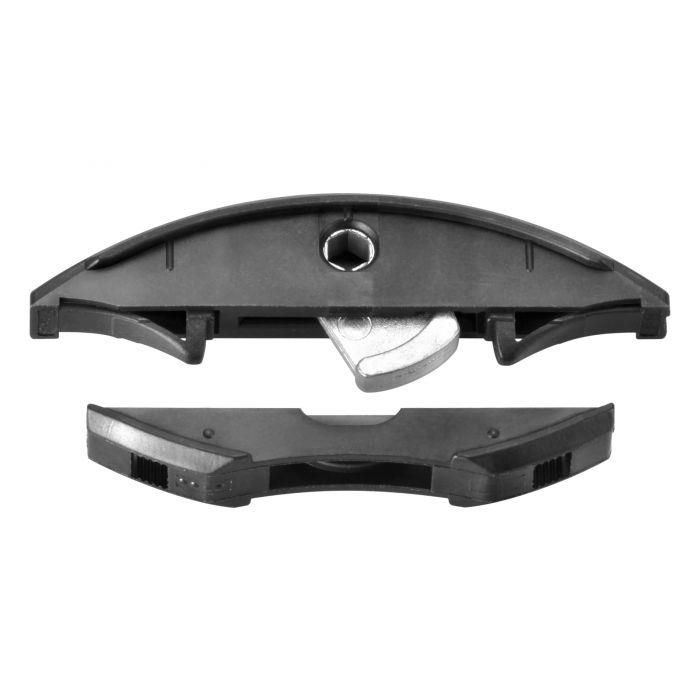

Lamello 145315 Clamex P-14/10 Flexus Connectors
The Lamello 145315 is a box of 80 pairs of Lamello Clamex P-14/10 Flexus detachable connectors for the P-System. Flexus has retractable positioning pins that press flush with the board edge, so shelves and panels can be fitted into an already assembled cabinet without taking the carcass apart.
Features and Specifications
- Part number: 145315
- Series: Clamex P Flexus, P-System
- Contents: 80 connector pairs
- Positioning pins: retractable, press flush with the edge
- Actuation: lever, tightened through its access hole
- Connector material: glass-fibre reinforced plastic
- Lever material: zinc die-cast
How It Installs
The P-System slots are cut with a Lamello Zeta P2 or machined on a CNC router with P-System tooling. The connector halves are pressed into the slots without glue or screws. During assembly the pins locate the fitting in the opposite half and stop it twisting as the lever is tightened through the access hole. The double-bevelled pins also let the part be taken out again later.
Who Uses It
Cabinet makers, shopfitters and furniture makers use the Lamello 145315 for shelves, partitions and panels that go into pre-assembled cabinets, for mitre and butt joints, and for any part that must come out again for service or transport.
Tips for Best Results
Cut a test joint in scrap from the same material first. Keep slots clean so the connector seats fully. Tighten the lever firmly but do not force it past its stop. Plan access hole positions on faces that will be hidden, such as the inside of a cabinet. Keep unused connectors in their box, sorted by type, so the right part is at hand on site.
Related Products
- Lamello joinery at IBEX
- Clamex connectors
- Lamello 101403USSD Zeta P2 biscuit joiner set
- Lamello 145346 Clamex P-14 connectors, 300 pairs
Order the Lamello 145315 from IBEX
IBEX stocks this item in Calgary and ships from Calgary. For larger quantities, call or email for a quote.
Additional information
| Weight | 2.00 lbs |
|---|---|
| Dimensions | 11.00 × 8.00 × 5.00 in |
| Brand | Lamello |
| Product Type | Detachable Furniture Connector |
| Series | Clamex Flexus |
| Part Number | 145315 |
| Connector Count | 80 pairs/box |
| Installation Method | P-System groove, lever-activated |
| Positioning Pins | Flexible |
| Compatible Tools | Lamello Zeta cutter or CNC P-System tooling |
| Material – Connector | Glass-fibre reinforced plastic |
| Material – Lever | Zinc die cast |
| Applications | Furniture, cabinetry, shelving, mitres |
| Condition | New |
