Lamello 145346 Clamex P-14 Detachable Connectors – 300 Pairs

Description

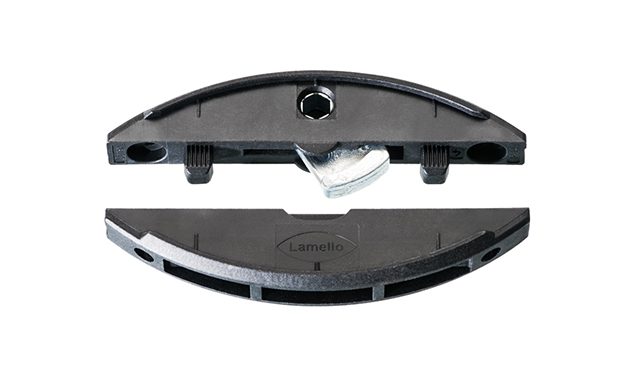

Lamello 145346 Clamex P-14 Detachable Connectors

The Lamello 145346 is a box of 300 pairs of Lamello Clamex P-14 detachable connectors. Clamex P-14 gives strong, precise, glue-free joints in panels 16 mm and thicker, and it leaves only a small 6 mm access hole that is used to tighten or release the joint.

Features and Specifications

• Part number: 145346
• Series: Clamex P-14, P-System
• Material thickness: from 16 mm (about 5/8 inch)
• Joints: mitres, angle joints and butt joints
• Access hole: 6 mm
• Assembly: detachable, no glue
• Packaging: 300 connector pairs

How It Installs

The P-System slots are cut with the Lamello Zeta P2, and the connector halves are pressed into the slots. When the parts are brought together, the lever inside the connector is turned through the 6 mm access hole to pull the joint tight with high clamping force. Turn it back to take the joint apart again.

Who Uses It

Cabinet shops, installers and furniture makers use the Lamello 145346 for open shelving, fitted cupboards, wardrobes under sloped ceilings, modular systems and flat-pack furniture that is assembled on site or moved later. The 300 pair box suits production runs.

Tips for Best Results

Cut a test joint in scrap first and check the fit. Keep slots free of chips so the connector seats fully. Plan access hole positions where they will be out of sight, such as on the inside face of a cabinet. Keep a few spare pairs on site for service work, and keep unused connectors in their box, sorted by type, so the right part is always at hand.
